ID kamery / ID2000 / MV-ID2004M-16T

MV-ID2004M-16T-RBN

0.4 MP Smart Code Reader

Klíčové vlastnosti

  • Vestavěný algoritmus deep learning pro robustní čtení kódů.
  • Kompaktní design a malé rozměry.
  • Obsahuje LED přísvit, který pomáhá zaměřit kódy.
  • Disponuje konfigurovatelným IO rozhraní pro vstupní a výstupní signály.
  • Podporuje komunikační protokoly: TCP, UDP, Serial, IO, Modbus, PROFINET, Ethernet/IP, FTP atd.


MV-ID2004M-16T-RBN

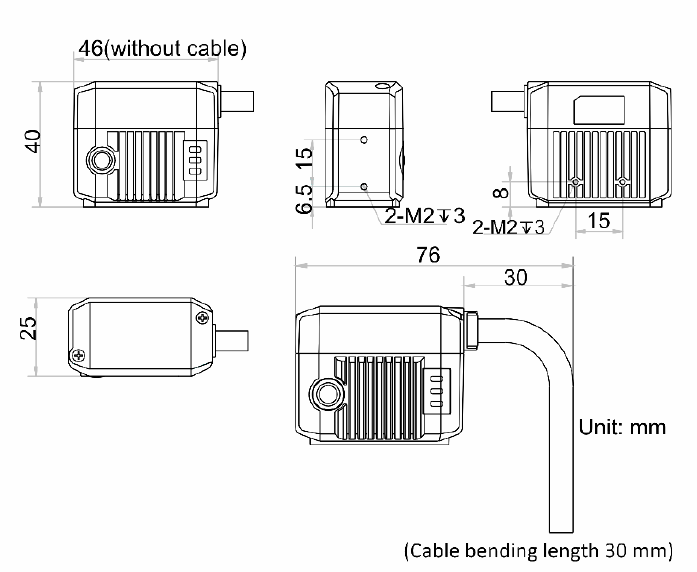

Rozměry


Specifikace MV-ID2004M-16T-RBN

Model Model MV-ID2004M-16T-RBN
Performance Symbologies 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE
2-dimensional codes: QR Code, Data Matrix
Max. frame rate 60 fps
Max. reading speed 45 codes/sec
Sensor type CMOS, global shutter
Pixel size 6.9 μm × 6.9 μm
Sensor size 1/2.9"
Resolution 704 × 540
Exposure time 16 μs to 1 sec
Gain 0 dB to 40 dB
Mono/color Mono
Communication protocol SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, UDP, Fins, SLMP
Optics Focal length 16 mm (0.63")
Working distance 100 mm to 400 mm (3.94" to 15.75")
Ambient illumination 0 lux to 50000 lux
Light source Red color
Aiming system Orange LED
Electrical features Data interface Fast Ethernet
Digital I/O 17-pin M12 connector provides power and I/O, including configurable bi-directional none-isolated I/O × 2 (Line 0/1), none-isolated input (Line 2) × 1, none-isolated output (Line 3) × 1, and RS-232 × 1.
Device trigger via pressing trigger button supported.
Power supply 12 VDC to 24 VDC
Max. power consumption Approx. 11 W@12 VDC
Mechanical Indicator Power indicator (PWR), network indicator (LNK), and status indicator (STS).
Dimension 46 mm × 40 mm × 25 mm (1.81" × 1.57" × 0.98")
Weight Approx. 135 g (0.30 lb.)
Ingress protection IP65
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F), storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software IDMVS
Certification CE, FCC, RoHS
